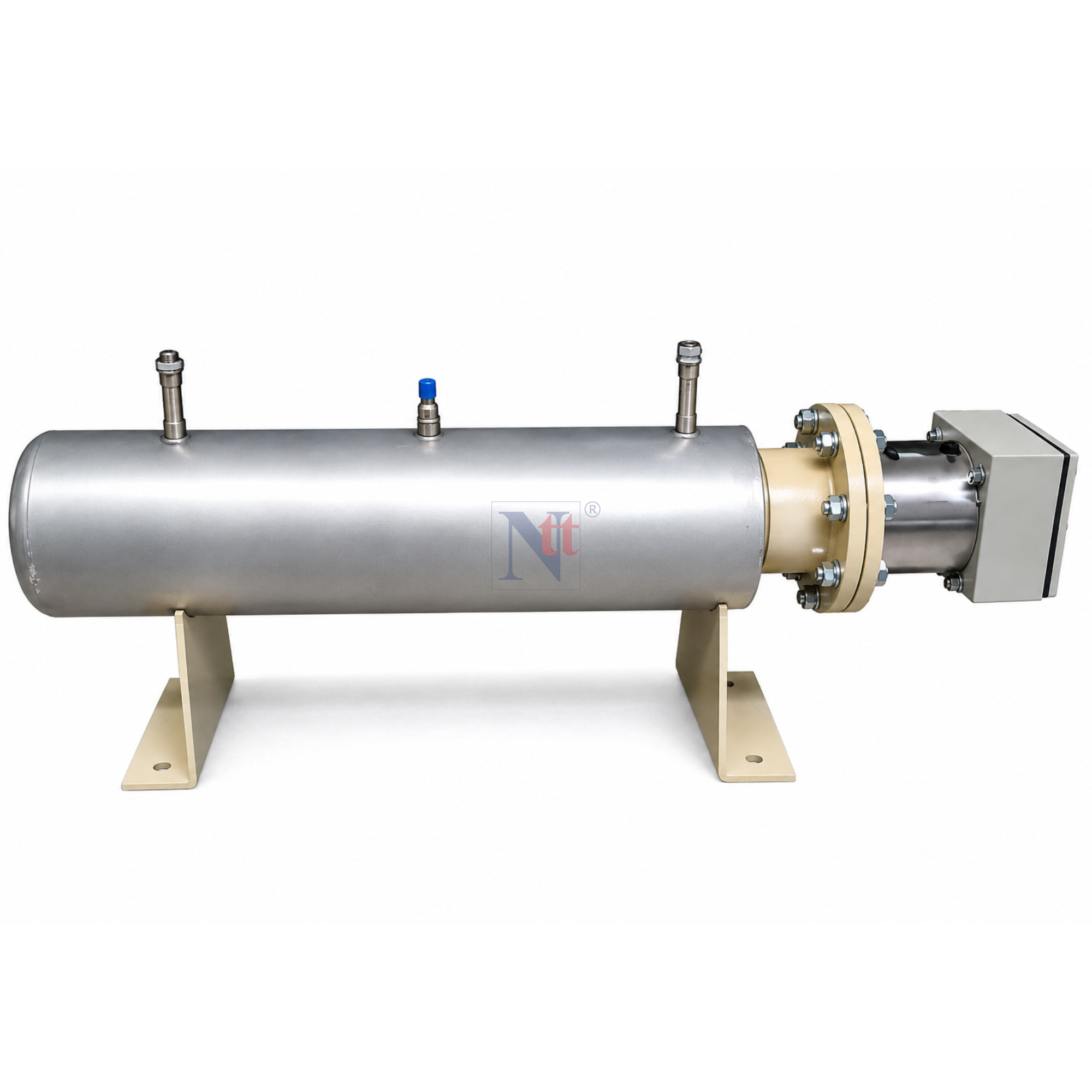

Circulation Heater Air/ Water/Oil
Overview
Circulation Heaters provide a ready-made means toĀ install electric heating within a very short period of timeĀ & labor. This is accomplished combining heatingĀ elements, vessel, insulation, terminal enclosure,Ā mounting brackets and inlet and outlet connections
into a complete assembly. Made from pressure ratedĀ flange, heater assemblies mated with a pressure vesselĀ (tank) circulation heaters are designed to heat forcedĀ circulation air, water or oil. Since the fluid directlyĀ passes over our heating elements assembled in the
vessel, it delivers fast response and even heatĀ distribution. NTT can meet all your circulation heaterĀ assembly needs with Made- to Order Units. These unitsĀ can be made from a wide range of heating elementĀ sheath materials, wattages, vessel sizes andĀ aterials,
pressure rating, terminal enclosures and controls & canĀ be made for both vertical and horizontal mounting.
Heater Specification
- Wattage: 0.5 to 212 KW
- Voltage: 415 V, 3 Phase
- Flange Size: Consult Factory (JIS, ANSI, DN sizes available)
- Pressure Rating: 5-15 Bar
- Sheath Materials: SUS 304, SUS 316 L, SUS 316 L seamless, Incoloy 840
