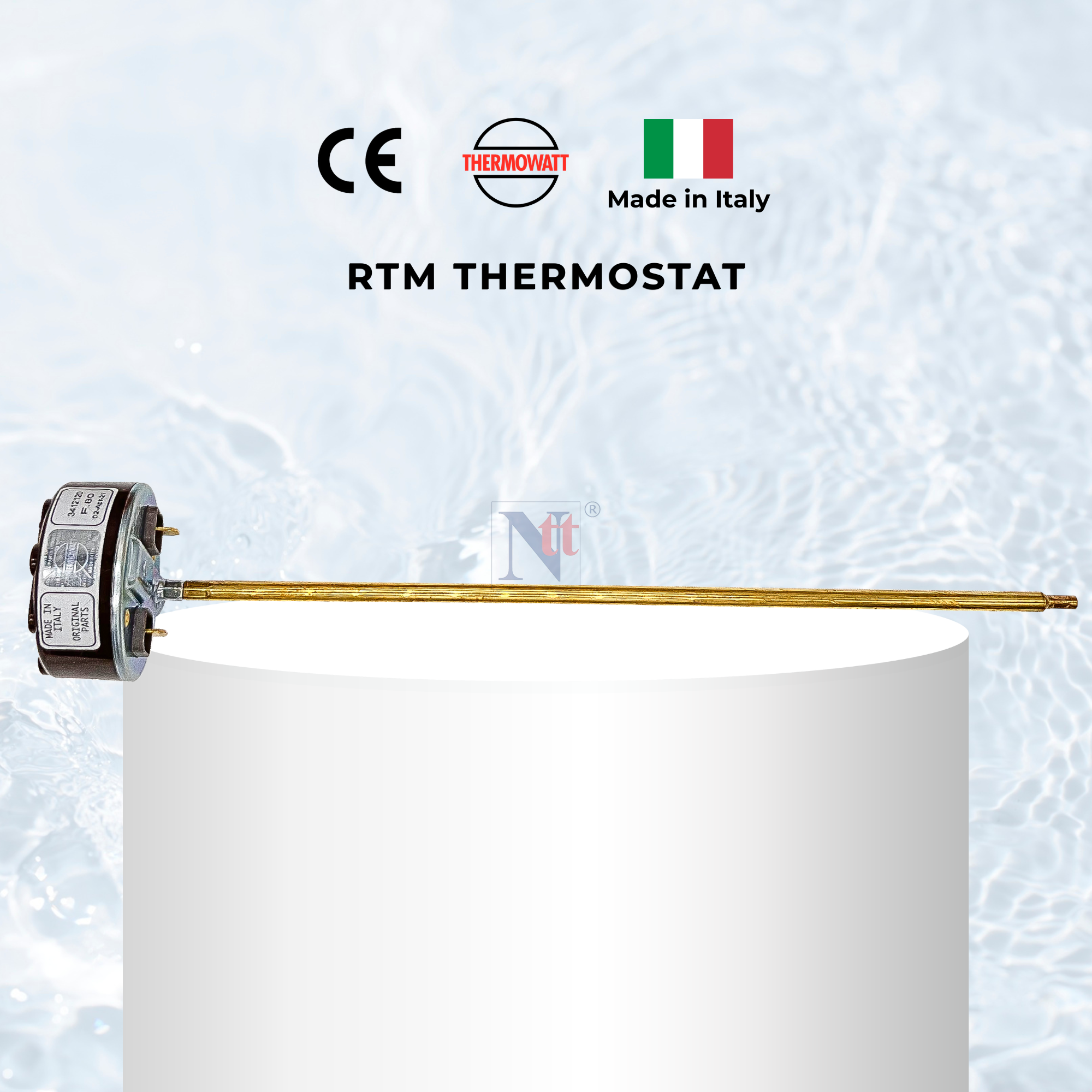

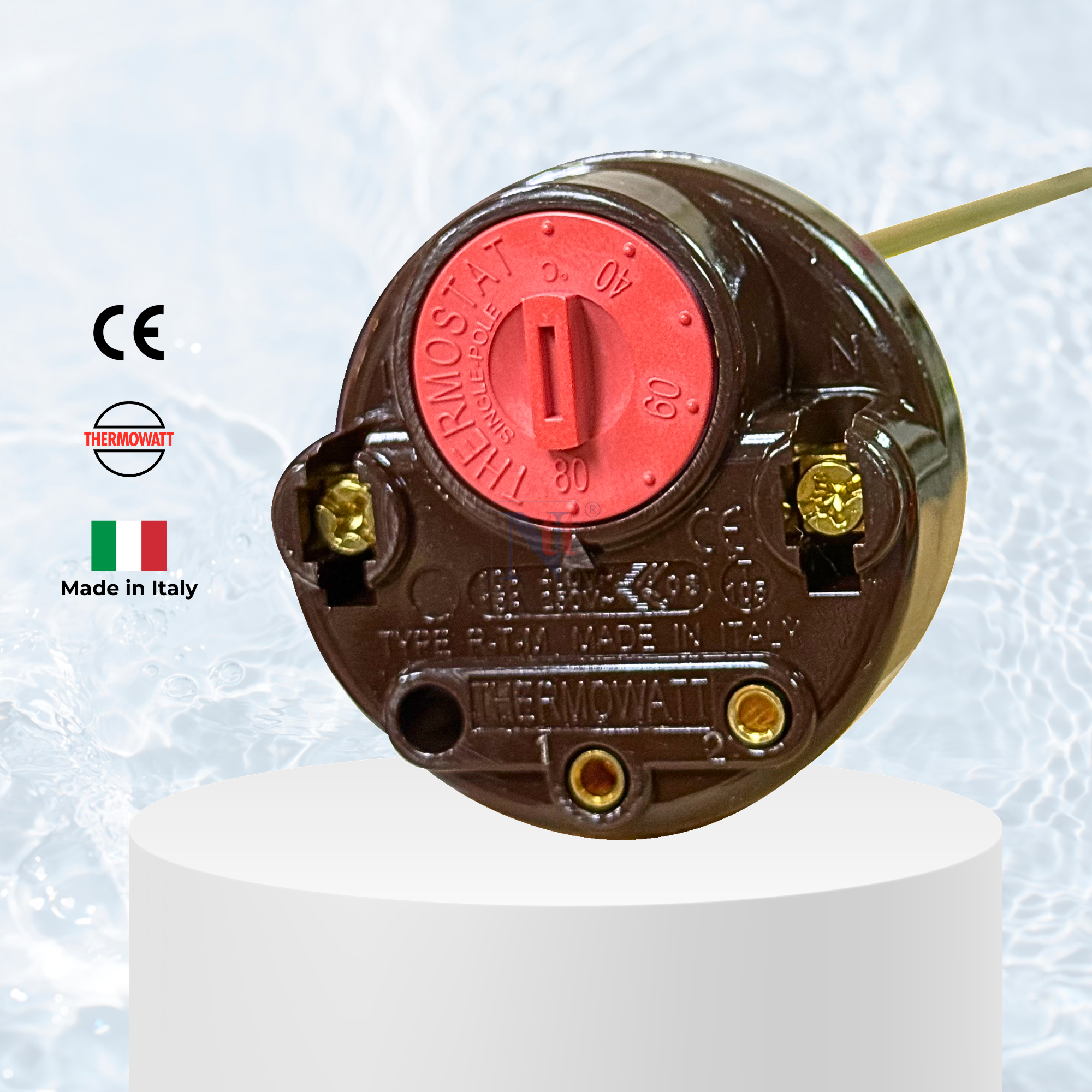

RTM Single Pole Thermostat
| Final Use | Water Heaters |
| Thermostat Type | Single-phase stem / Rod Thermostat |
| Functional Cut-Off | Unipolar |
| Safety Cut-Off | – |
| Safety Reset | – |
| Max Ambient Operating Temperature | T 105°C |
| Rated Current / Voltage | 20A / 250V AC ; 10A 40 0V AC |
| Max Functional Temp / Accuracy | According to Customer Specification (Max 90°c) / ±5°C |
| Max Safety Temp | – |
| Temperature Selection Range | From 20°C to Max |
| Thermal Hysteresis | 8±4°C |
| Standard Stem Length | 280mm |
| Stem Length on Request | 220mm, 350mm, 450mm |
| Electrical connection | Quick fast-on connection 6,3×1,0mm |
| Assembly | – |
| External Regulation | Available |
Notes: Thermostat designed for an easy and quick matching with our flange or screw type heating elements
