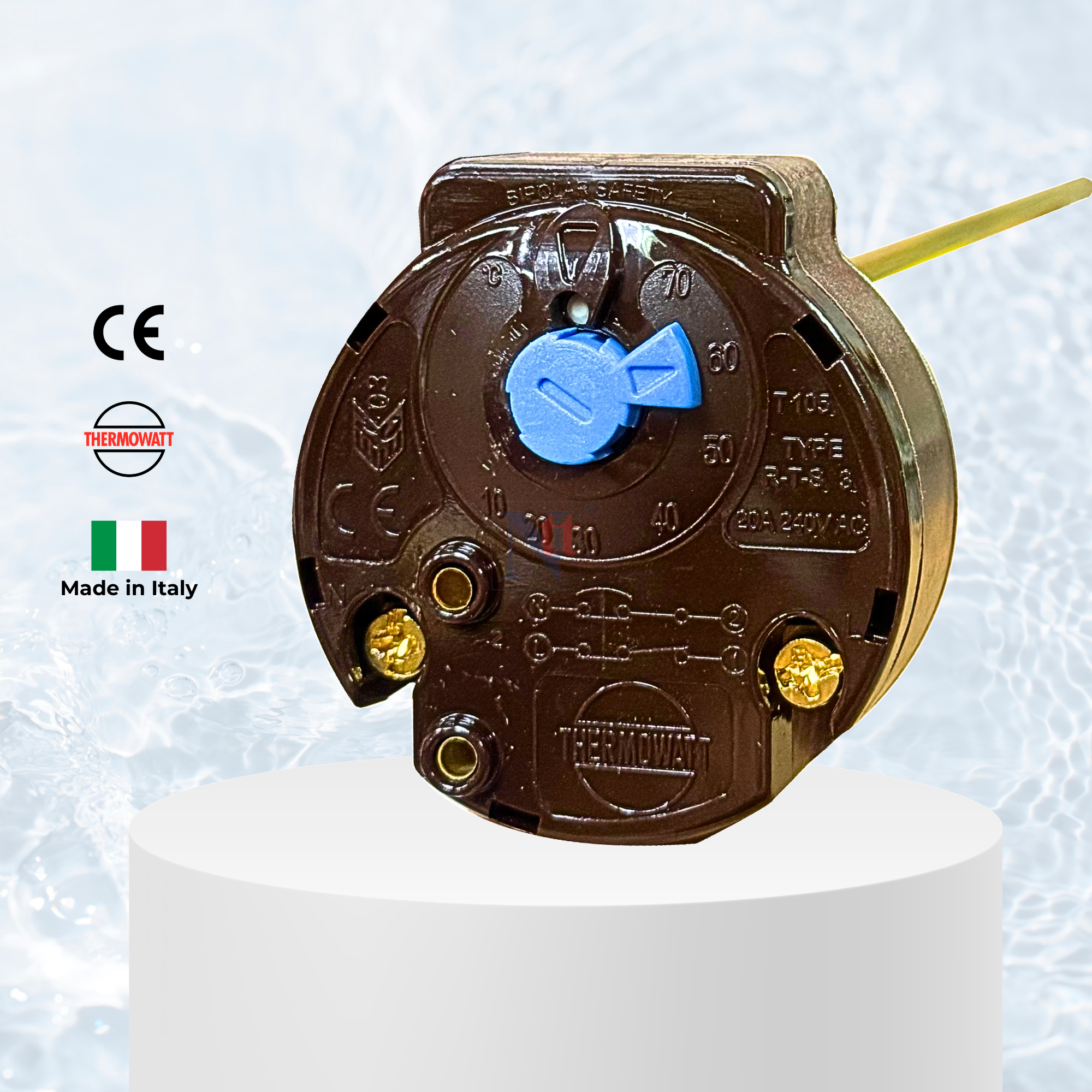

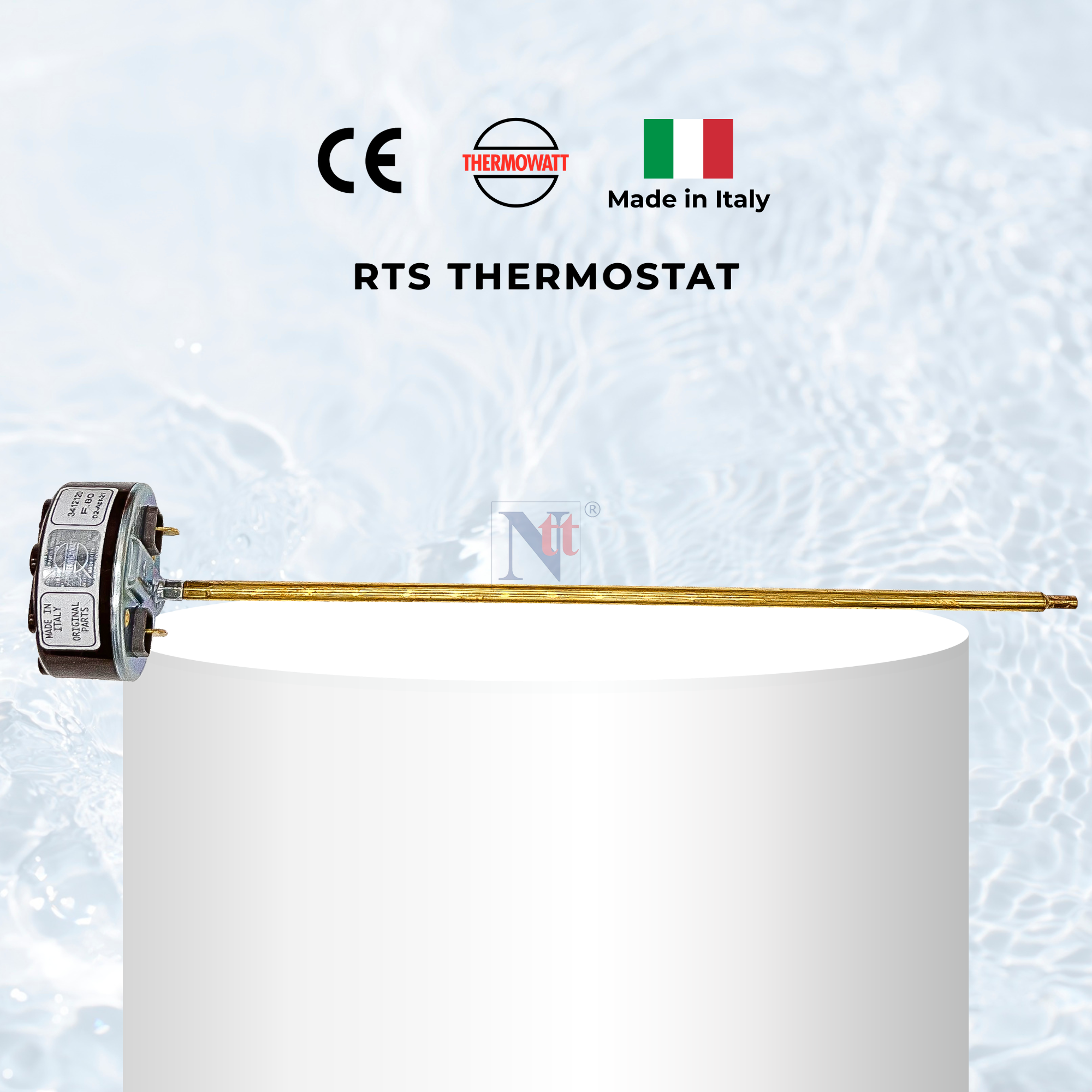

RTS 2 Pole Safety Manual Reset Thermostat
Final use | Water heaters |
Thermostat type | Single-phase Stem thermostat |
Functional cut-off | Unipolar |
Safety cut-off | Bi-polar with bimetal disk |
Safety reset | Manual |
Max temperature value | T105 |
Electrical nominal tension | 16A 250V AC – 20A 250V AC |
Max functional value | As per customer request |
Max safety value | As per customer request |
Temperature selection | From 20’C to Tf max |
range | 10+3’C |
Thermic differencial | 280mm |
Standard stem length | 220mm, 450mm |
Stem length on request | Quick fast-on connection 6,3×1,0mm |
Electrical connection | The thermostat is designed for an easy & quick matching |
Notes | with our heating elements RT and RF |
Description
